Hebei Kaixiang Hluav Taws Xob Technology Co., Ltd. Yog hais tias koj yuav mus rau cov lag luam wholesale bulk advanced ac 415v 500kw resistive load bank, txais tos kom tau pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.

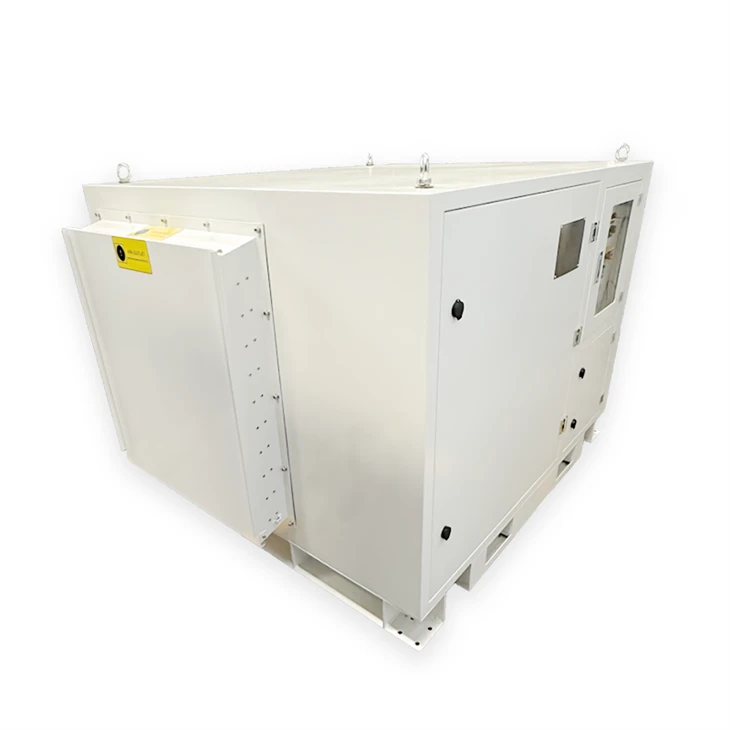

Lub AC 415V 500kW Resistive Load Bank integrates precision load stepping, real-time data acquisition, dual-mode control (local / intelligent), thiab kev tiv thaiv kev ua haujlwm rau hauv ib qho chaw ruaj khov. Nws yog qhov kev ntsuam xyuas zoo tshaj plaws rau nruab nrab-rau- cov tshuab hluav taws xob loj loj thiab cov roj av, UPS systems, inverters, switchgear, thiab lub zog tseem ceeb hauv kev ua haujlwm ntawm 415 V hauv cov chaw zov me nyuam, tsev kho mob, cov nkoj hauv hiav txwv, offshore platforms, telecom stations thiab industrial chaw - tshwj xeeb tshaj yog nyob rau hauv cov teb chaws Europe, nruab nrab ntawm BS, Australia, thiab lwm yam.
Technical Parameters
|
Technical Parameters |
|
|
Rated Voltage / zaus |
AC peb-theem plaub-hlau, AC415V 50/60Hz |
|
Max load zog |
hwj chim 510 kW; |
|
Kauj ruam Load |
Resistive load: muab faib ua 11 lub zog, Raws li: 1,2,2,5,10,20,20,50,100,100,200kW. 1. Thaum siv qis dua qhov ntsuas hluav taws xob, lub zog iav txo qis raws li Ohm txoj cai. |
|
Load Tolerance (txhua kauj ruam) |
±5% |
|
Load Tolerance (tag nrho) |
±3% |
|
Zaub Precision |
0, 5 klas |
|
Tswj fais fab mov |
Kev sib txuas sab hauv: peb-theem tsib-hlau AC 415V/50Hz; Kev sib txuas sab nraud: peb-theem tsib-hlau AC 415V/50Hz; Nco tseg: Thaum txuas nrog sab hauv, lub cuab yeej qhia txog kev ua haujlwm ntawm lub zog tsis muaj zog. |
|
Hlau txuas |
Load Power Supply Input--Copper bar (Star Connection) Tswj fais fab mov input--kab txhab nyiaj |
|
Kev sib txuas lus Interface |
RS485, RS232, RS485 thiab RS232 |
|
Rwb thaiv tsev Class |
F Chav |
|
Ua hauj lwm hom |
Ua haujlwm tsis tu ncua |
|
Txias |
Forced cua txias, sab intake, sab tso pa tawm |
|
Kev thauj mus los |
Kev nqa. Muaj cov khoom thauj-cov kabmob nqa cov nplhaib nyob rau sab saum toj ntawm lub txee, thiab ko taw lub log thiab forklift qhov yog muab rau hauv qab. |
|
Dimension |
Txog 1820mm × 1400mm × 1190mm (ntev × dav × siab, Tsis suav nrog lub nplhaib thiab lub log qhov siab) |
|
Qhov hnyav |
Txog 800 kg |
|
Kev khiav hauj lwm ib puag ncig Parameter |
|
|
Chaw ua haujlwm |
Sab nraum zoov |
|
Ua haujlwm kub |
-20℃-+55 degree |
|
txheeb ze humidity |
Tsawg dua lossis sib npaug li 95% |
|
Qhov siab |
Tsawg dua lossis sib npaug li 2500M |
|
Atmospheric siab |
86-106kPa |
Khoom nta
Dual-Mode Control with Interlock: Cov neeg siv tuaj yeem xaiv ntawm Kev Tswj Hauv Zos (ntawm lub vaj huam sib luag hloov thiab ntsuas) thiab Kev Tswj Xyuas Ntse (ntawm PC software). Ib qho kev hloov kho kho vajtse cuam tshuam ua kom ntseeg tau tias xaiv ib hom cia li tsis lees paub rau lwm qhov, tiv thaiv kev ua haujlwm tsis sib haum xeeb.
Steady-State Generator Testing: Tsis pub dhau lub ntsuas hluav taws xob ntau, lub kaw lus ntsuas thiab qhia tau ruaj khov-state 3-theem voltage, tam sim no, lub zog nquag, zaus, thiab lub sijhawm ua haujlwm ntawm lub tshuab hluav taws xob.
Network Cable Kev Sib Txuas Lus: Kev txawj ntse tswj txuas ncaj qha mus rau PC ntawm lub network cable (Ethernet/RJ45), muab kev tiv thaiv zoo heev - muaj peev xwm cuam tshuam thiab ua kom muaj kev ruaj ntseg zoo.
Dual Load Patterns:
Kev Taw Qhia Load: Input lub hom phiaj lub hwj chim, thiab lub kaw lus loads raws li.
Tsis Siv Neeg Load: Tus neeg siv presets lub zog thiab lub sijhawm ua haujlwm rau ntau lub sijhawm thauj khoom (piv txwv li, 0% → 25% → 50% → 75% → 100% → 110%) kom automate kev sim ua ntu zus.
Parallel Operation Management (Ntxiv): Thaum ntau lub tsev txhab nyiaj thauj khoom ua haujlwm nyob rau hauv tib lub sijhawm, software hauv nruab nrab tswj hwm thiab qhia txog qhov tsis zoo rau txhua chav tsev nrog rau tag nrho cov kab ke sib luag.
High-Speed Data Capture: Qhov tsawg kawg nkaus ruaj khov- lub xeev cov ntaub ntawv daws lub sijhawm ntawm 1 thib ob, ua kom cov ntaub ntawv raug raug ruaj khov- lub xeev kev ua haujlwm.
Graphical Display & Export: Qhia qhov tseeb- lub sijhawm lossis keeb kwm kev xeem cov ntaub ntawv nrog 6 hom duab (pab V / I / F / P, Voltage, Tam sim no, Fais fab, Zaus, Fais Fab). Tag nrho cov curves/graphs export as .word format, thiab test report export as .xls format, with full printing support.
Khoom zoo
Kev ruaj khov & cuam tshuam-Cov ntaub ntawv pov thawj: Siv cov kev sib txuas ncaj qha rau cable es tsis txhob siv cov chaw nres nkoj serial chaw muab kev tiv thaiv kev cuam tshuam rau electromagnetic cuam tshuam, lav kev ruaj ntseg cov ntaub ntawv xa mus txawm nyob rau hauv hluav taws xob tsis muaj suab nrov muaj ib puag ncig.
Lub tshuab hluav taws xob-Centric Design: Tshwj xeeb ua kom zoo rau qhov ruaj khov- lub xeev load kuaj ntawm lub tshuab hluav taws xob teeb, raug ntes thiab nthuav tawm qhov tsis tseem ceeb los txheeb xyuas qhov ntev - lub sijhawm ua haujlwm ruaj khov.
Safe & Fluctuation-Kev Ua Haujlwm Dawb: Ib qho - qhov tseem ceeb preset- lub zog ua haujlwm tiv thaiv lub zog tam sim ntawd los yog poob thaum hloov kho, tiv thaiv ob lub txhab nyiaj thauj khoom thiab lub tshuab hluav taws xob nyob rau hauv kev sim los ntawm kev puas tsuaj ib ntus.
Rapid Fault Diagnosis: Software taw qhia teeb pom kev zoo saib xyuas cov xwm txheej hauv txhab nyiaj. Yog tias qhov kev kaw tsis raug cai tshwm sim vim muaj kev tiv thaiv tshwm sim, qhov laj thawj tshwj xeeb tau qhia meej meej, txo qis lub sijhawm daws teeb meem.
Kev Tshaj Tawm Turnkey: Tau qhov kev tsim ntawm cov nkhaus thiab cov ntaub ntawv tabular hauv cov qauv .word thiab .xls txhais tau tias xoom phau ntawv muab tso ua ke - zoo tagnrho rau thib peb- kev tshuaj xyuas tog, kev xeem lees paub ntawm lub Hoobkas (FAT), thiab kev ua raws li kev xa tawm.
Scalable Architecture: Qhov kev sib txuas txuas ntxiv ua haujlwm tso cai rau ntau chav nyob sib txuas ua ke, ua rau siab - muaj peev xwm txheeb xyuas qhov deb tshaj li ib chav tsev ntsuas lub zog.
Daim ntawv thov Scenario
Generator Set Commissioning & FAT: Zoo meej rau kev ua cov txheej txheem ruaj khov- lub xeev cov kauj ruam- load tests (0–110%) ntawm lub tshuab hluav taws xob diesel / roj teeb ncaj qha rau hauv pem teb ntau lawm lossis ntawm qhov chaw teeb tsa.
Kev Tiv Thaiv Kev Tiv Thaiv: Kev txheeb xyuas qhov muaj peev xwm niaj hnub thiab kev kuaj kev laus rau cov tshuab hluav taws xob standby hauv cov chaw zov me nyuam, tsev kho mob, thiab cov chaw tsim khoom lag luam kom ntseeg tau tias muaj kev ntseeg siab ua ntej muaj xwm txheej ceev.
Multi-Unit Parallel Systems: Kev sim ua haujlwm synchronized ntawm ntau lub tshuab hluav taws xob teeb lossis cov tsev txhab nyiaj sib txuas kom ntseeg tau tias muaj kev sib koom ua haujlwm sib luag thiab qhov system-wide stability.
Lub Chaw Saib Xyuas Kev Nyab Xeeb Zoo: R & D lub tuam tsev thiab cov chaw kuaj sim uas xav tau siab - daws teeb meem (1-thib ob) cov ntaub ntawv kaw lus thiab cov khoom siv hluav taws xob siv hluav taws xob rau kev siv hluav taws xob siv hluav taws xob.
Kev Pabcuam Kev Ua Haujlwm: Cov hom kev tswj hwm hauv zos tso cai rau cov kws tshaj lij los ua qhov kev ntsuas lub txhab nyiaj sai sai yam tsis xav tau lub PC, thaum hom ntse muab cov ntaub ntawv sib sib zog nqus thaum txuas nrog lub network.
